Product Code：SP3275
Product Name：Pentaphenyltrimethyltrisiloxane
Product Introduction：
This product is synthesized from high-purity methylphenyl silane monomers via hydrolytic copolymerization, molecular chain regulation and high-temperature equilibrium polymerization. It is further refined through multi-stage high-vacuum rectification to remove light components and harmful impurities, reaching the purity grade for vacuum equipment application.
This oil features an extremely low saturated vapor pressure. It resists volatilization and thermal cracking under high-temperature working conditions, and delivers exceptional thermal stability and oxidation resistance. With prominent chemical inertness, it is corrosion and radiation resistant, and provides high pumping efficiency. Its performance degrades slightly during long-term operation, enabling it to steadily maintain an ultra-high vacuum environment.
It is widely applied in vacuum coating, semiconductor chip fabrication, vacuum metallurgical smelting and electron beam processing. Compatible with various large and medium-sized high-vacuum diffusion pumps, it is an indispensable dedicated working medium for precision vacuum equipment.
Basic Information
- Chinese name：275# 高真空扩散泵硅油
- CAS number：[3390‑61‑2]

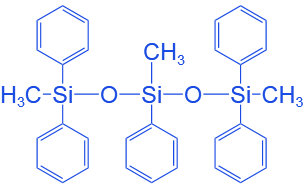

- Molecular formula：
Technical indicators
| Project |
Indicator |
| Appearance |
Colorless or yellowish transparent fluid |
| Color, HAZEN |
20~50 |
| Viscosity 25℃, mm²/s |
165~185 |
| Refractive Index, 25 ℃ |
1.5700~1.5790 |
| Flash Point (open cup), ℃ |
>243 |
| Freezing Point, ℃ |
<-50 |
| Density 25℃, g/cm³ |
1.090~1.100 |
| Ultimate vacuum, (Pa) |
＜6.65×10﹣⁸ |
| Saturated vapor pressure, (Pa) |
＜6.65×10﹣⁹ |
Characteristic advantages
- Low saturated vapor pressure.
- Good stability.
- Excellent antioxidant performance.
- Good chemical inertness.
Application field
- High vacuum coating.
- Vacuum smelting industry.
- Electron tube industry.
- Used in electron microscopes and displays.
Safe handling
- Wear eye protection and protective gloves as required while handling the product.
- Use the product in a well ventilated area.
- Please consult our MSDS.
Use storage
- When stored in its original container below 40°C and unopened, the shelf life is 2 years. It can still be used after re-inspection.
- Store in a cool and dry place out of direct sunlight.
- Keep out of the reach of children.
Packaging Information
- Available in 25KGS drum, 200KGS drum or 1000KGS IBC.
